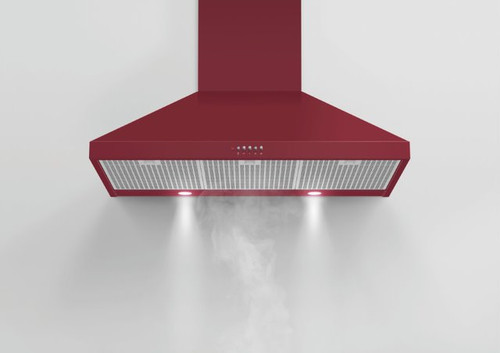

DA 399-7 W - Classic Wall Mounted Rangehood

Product Description

DA 399-7 W - Classic Wall Mounted Rangehood

Construction type

-         Wall-mounted rangehood

Design

-         Colour Stainless steel

-         RAL colours available as customisation on request

-         Customisation possible on request

Operating modes

-         Type of air guide Convertible

-         Active charcoal filter (order separately) DKF12-1

User convenience

-         Electronic controls

-         Light-touch controls

-         Power levels (number without Booster level) 3

-         Booster level

-         Programmable Booster level switch-off

Cleaning convenience

-         Easy-to-clean canopy interior – CleanCover

Filter system

-         Number of dishwasher safe stainless steel grease filters 3

Lighting

-         LED

-         Light intensity in Lx 300

-         Colour temperature in K 3000

Fan

-         Dual-action fan

-         AC motor

Air throughput with max. duct diameter in extraction mode (not for external version)

-         Air throughput in Level 1 (m³/h) 150

-         Air throughput in Level 2 (m³/h) 250

-         Air throughput in Level 3 (m³/h) 350

-         Air throughput in Booster level (m³/h) 500

-         Sound power in Level 1 (dB(A) re 1 pW) 41

-         Sound power in Level 2 (dB(A) re 1 pW) 47

-         Sound power in Level 3 (dB(A) re 1 pW) 55

-         Sound power in Booster level (dB(A) re 1 pW) 62

-         Sound pressure in Level 1 (dB(A) re 20 µPa) 26

-         Sound pressure in Level 2 (dB(A) re 20 µPa) 34

-         Sound pressure in Level 3 (dB(A) re 20 µPa) 40

-         Sound pressure in Booster level (dB(A) re 20 µPa) 47

Air throughout in recirculation mode

-         Air throughput in Level 1 (m³/h) 100

-         Air throughput in Level 2 (m³/h) 150

-         Air throughput in Level 3 (m³/h) 250

-         Air throughput in Booster level (m³/h) 350

-         Sound power in Level 1 (dB(A) re 1 pW) 48

-         Sound power in Level 2 (dB(A) re 1 pW) 55

-         Sound power in Level 3 (dB(A) re 1 pW) 61

-         Sound power in Booster level (dB(A) re 1 pW) 68

-         Sound pressure in Level 1 (dB(A) re 20 µPa) 34

-         Sound pressure in Level 2 (dB(A) re 20 µPa) 41

-         Sound pressure in Level 3 (dB(A) re 20 µPa) 47

-         Sound power in Booster level (dB(A) re 1 pW) 53

Safety

-         Safety switch-off

Technical data

-         Overall height for extraction mode and external mode cooker hoods in mm 695-1015

-         Overall height for recirculation mode cooker hoods in mm 825-1145

-         Canopy width in mm 898

-         Canopy height in mm 120

-         Canopy depth in mm 520

-         Minimum height above gas hobs (max. 12.6 kW total power, burner ≤ 4.5 kW) in mm 650

-         Net weight in kg 26

-         Length of supply lead in m 1.5

-         Standard plug fitted

-         Total rated load in kW 0.13

-         Voltage in V 230

-         Fuse rating in A 10

-         Number of phases 1

Installation notes

-         Extraction ducting connection at top

-         Extraction connection at top and rear

-         Diameter of extraction ducting connection in mm 150

-         Telescopic chimney

Standard Accessories

-         Non-return flap

-         Adapter to reduce ducting diameter from 150 mm to 125 mm Ø
