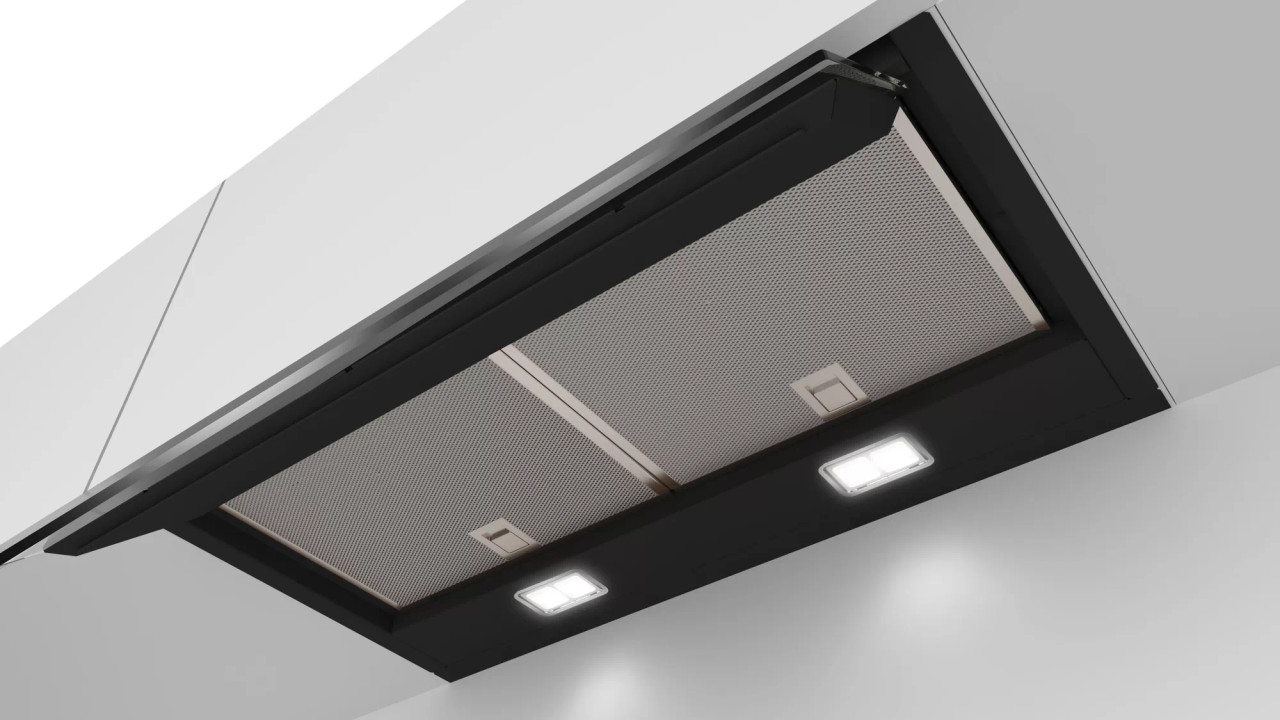

DBB67AM60A - Serie 6 60cm Integrated Rangehood - Clear Black Glass

Product Description

DBB67AM60A - Serie 6 60cm Integrated Rangehood - Clear Black Glass

FEATURES

-       Perfectly integrated design rangehood with extendable glass visor for superior extraction.

-       Seamless Integration: thanks to flush installation design hood is almost invisible in an upper cabinet.

-       Flexibility: flexible kitchen planning, such as height, width, design and structure of the upper cabinet interior possible.

-       Glass panel with integrated TouchSelect control: an automatic recognition of the glass panel positive enables automatical operation of power level and light.

-       Expanded storage space: the hood can hold up to 10kg on each side. And even left and right.

-       Silent: maximum extractor performance with little noise.

Model & Design

-       Appliance width: 597 mm

-       Install into a 60cm wide wall cupboard

-       Ducted and recirculated-air operation

-       For recirculated extraction various recirculation kits are available as optional accessories.

-       Flush-fitted installation for a seamless integration in wall cupboards.

-       Space efficient, compact design for extra storage possibilities on the hood and up to max. 10 kg storage weight per side.

-       Glass panel with touch control for an easy operation and enhanced vapor capture.

Comfort

-       Electronic controls via TouchControl with Electronic display

-       3 power settings plus intensive setting

-       Intensive setting with automatic switch back to previous setting

-       Intensive operation automatic revert - 6min

-       The fan and light are automatically turned on and off by opening and closing the glass panel.

-       The light can also be independently turned on and off when the glass panel is closed by quick hand touch on control area.

Cleaning

-       2 x 2 W LED

-       2 x LM3-02_LED

-       Colour Temperature: 3500 K

-       Light Intensity: 451 lux

-       Capacitor energy efficient

-       Dishwasher safe metal grease filters

-       Stainless steel filter covers

-       Easy to clean smooth surfaces and materials.

Performance

-       Extraction rate according to EN 61591 ø 15 cm: max. Normal use460m³/h
Intensive749 m³/h

-       Noise level according to EN 60704-3 exhaust air: Max. normal use:63dB(A) re 1 pWIntensive:73 dB(A) re 1 pW

-       Noise min./max. Normal Level: 50/63 dB

-       With the Clean Air Plus recirculation kit (available as accessory) your appliances reaches:

Extraction rate in recirculation mode: Max. normal use:451m³/h
Intensive:652m³/h
Noise level in recirculation mode: Max. normal use:67dB(A) re 1 pW
Intensive:74 dB(A) re 1 pW

Planning and Installation Information

-       Integrated Design Hood comfort installation: easy installation system

-       Suitable for installation in bottomless wall cupboards.

-       Enclosed spacers for installation in wall cupboards with maximum depth of up to 360 mm.

-       Enclosed mats for protection against scratches and dirt of storage space on hood sides.

-       For installation in higher wall cupboards chimney extensions are available as optional accessories.

-       Chimney extensions are compatible with the available recirculation kits.

-       Appliance dimensions (HxWxD): 340 x 597 x 298 mm

-       Built-in dimensions (HxWxD): 340 x 560 x 300 mm

-       Diameter pipe Ø 150 mm (Ø 120 mm enclosed)

-       with one-way flap: prevents outside air from entering your kitchen

-       Electrical cable length 1.3 m

-       Please reference the built-in dimensions provided in the installation drawing

Consumption Data

-       Energy Efficiency Class: B (at a range of energy efficiency classes from A++ to E)

-       Average Energy Consumption: 62.7 kWh/year

-       Power rating: 256 W
