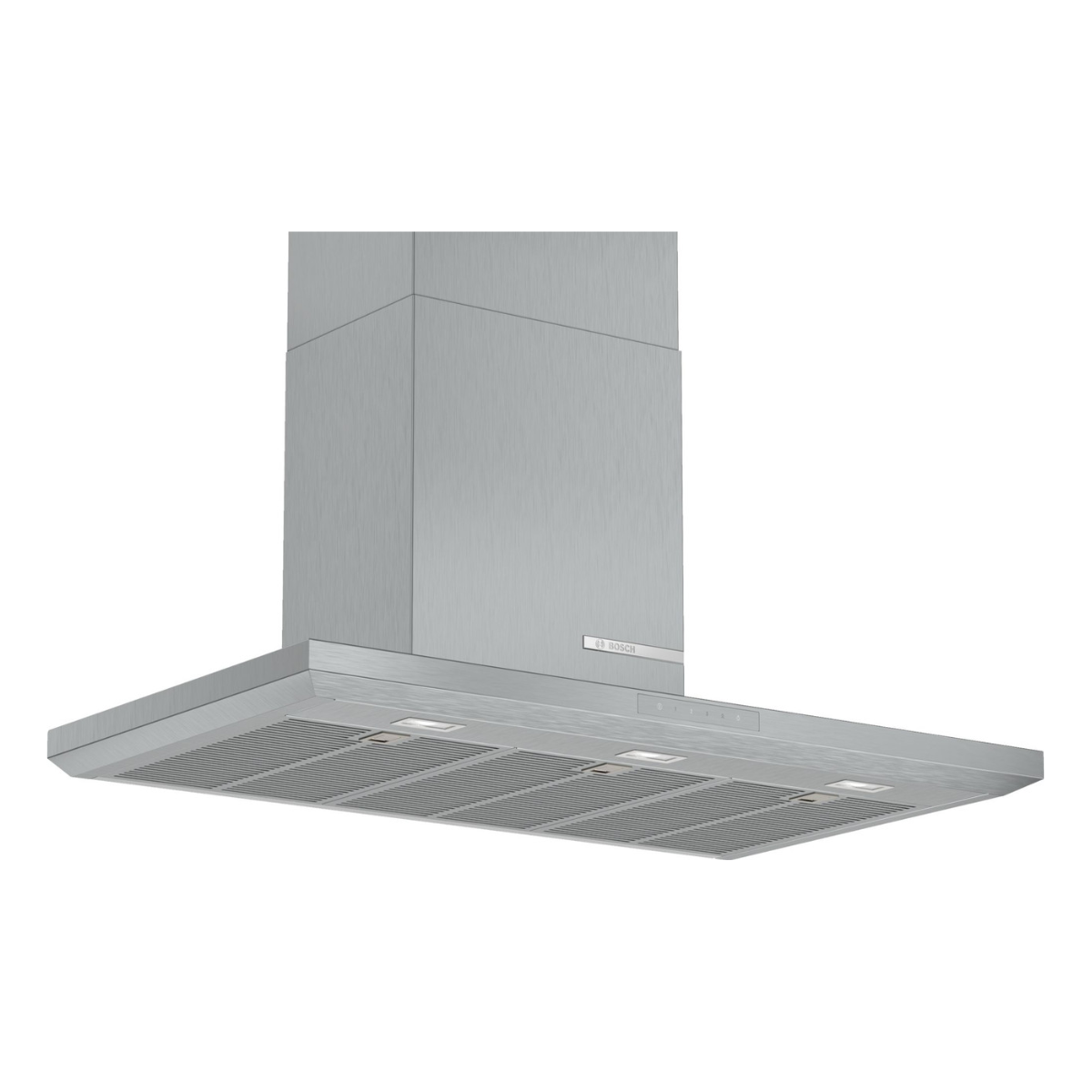

DWB97LM50A - 90cm Series 6 Wall-Mounted Canopy Rangehood - Stainless Steel

Product Description

DWB97LM50A - 90cm Series 6 Wall-Mounted Canopy Rangehood - Stainless Steel

KEY FEATURES

-           Extraction rate: at 697 m3/h, it quickly ensures optimal kitchen air quality.

-           Especially quiet: high performance at just 55 dB.

-           LED lighting: for perfect, energy-efficient illumination of the cooktop.

-           Intensive speed setting with reset: automatically resets the hood to regular speed setting after 6 min.

Design & Innovation

-           Box design

-           Appliance colour: Stainless steel

Power and Mode of Operation

-           3 power settings plus intensive setting

-           Extraction rate according to EN 61591 ø 15 cm:

-           max. Normal use 431 m³/h

-           Intensive 697 m³/h

-           Extraction rate in recirculation mode:

-           Max. normal use: 319 m³/h

-           Ducted and recirculated-air operation

-           Electronic controls with white LED display

-           TouchControl

-           EcoSilence BLDC brushless motor

-           Noise min./max. Normal Level: 45/55 dB

-           Noise max. Intensive setting: 66 dB

-           Noise level in recirculation mode:

-           Max. normal use: 70 dB(A) re 1 pW (57 dB(A) re 20 µPa sound pressure)

-           Energy Efficiency Class: A (at a range of energy efficiency classes from A++ to E)

-           Average Energy Consumption: 33.1 kWh/year

-           Power rating: 145 W

Comfort & Convenience

-           with one-way flap: prevents outside air from entering your kitchen

-           Dishwasher safe metal grease filters

-           3 x 1.5 Watt LED Lights

-           Intensive operation automatic revert - 6min

-           Additional sound insulation mats for optimised sound absorption

Technical Information

-           Appliance width: 898 mm

-           Dimensions exhaust air (HxWxD): 628-954 x 898 x 500 mm

-           Dimensions recirculating (HxWxD): 628-1064 x 898 x 500 mm

-           Diameter pipe Ø 150 mm (Ø 120 mm enclosed)

-           Electrical cable length 1.3 m

General

-           Width 90 cm

-           Depth of the product 500 mm

-           Construction type Built-in

-           Operating Mode Convertible

-           Sound pressure max. normal 42 dB (A)

-           Type of control setting and signalling devices LED, touch control

-           Energy efficiency class A

-           Total annual energy consumption 33.1 kWh/annum

-           Power consumption standby/display off 0.2 W

Construction type

-           Diameter of air outlet (mm) 120 / 150 mm

-           Colour Stainless steel

-           Grease filter material Washable stainless steel

-           Grease filter type Kassette

-           Installation typology Wall-mounted

-           Material of the body Stainless steel

-           Material chimney Stainless steel

-           Motor location Integrated motor in hood chimney

-           Number of motors 1

-           Operating Mode Convertible

-           Typology Chimney

Connection

-           Connection rating (W) 145 W

-           Length electrical supply cord (cm) 130 cm

-           Frequency (Hz) 50; 60 Hz

-           Total power of the motors (W) 140 W

-           Voltage (V) 220-240 V
