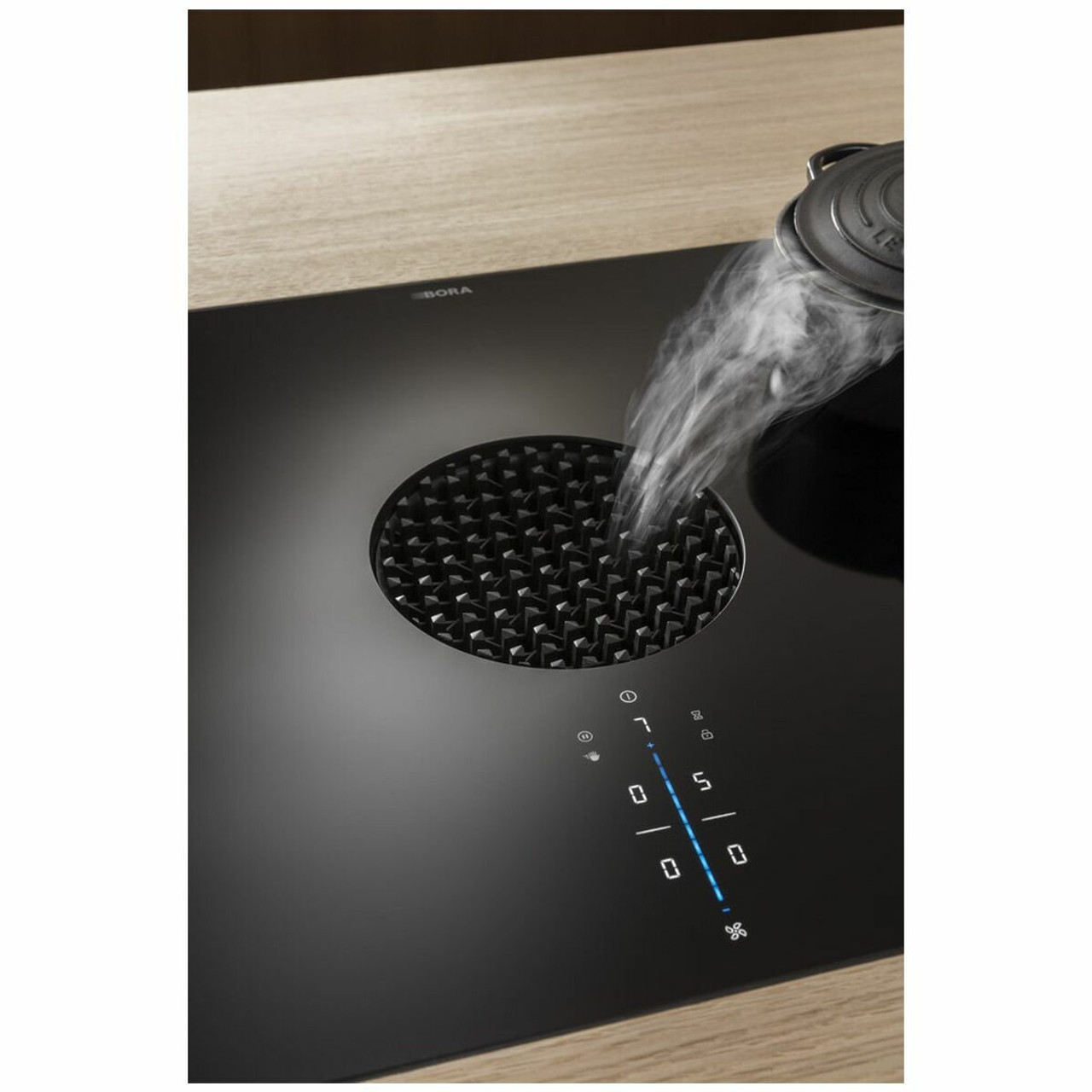

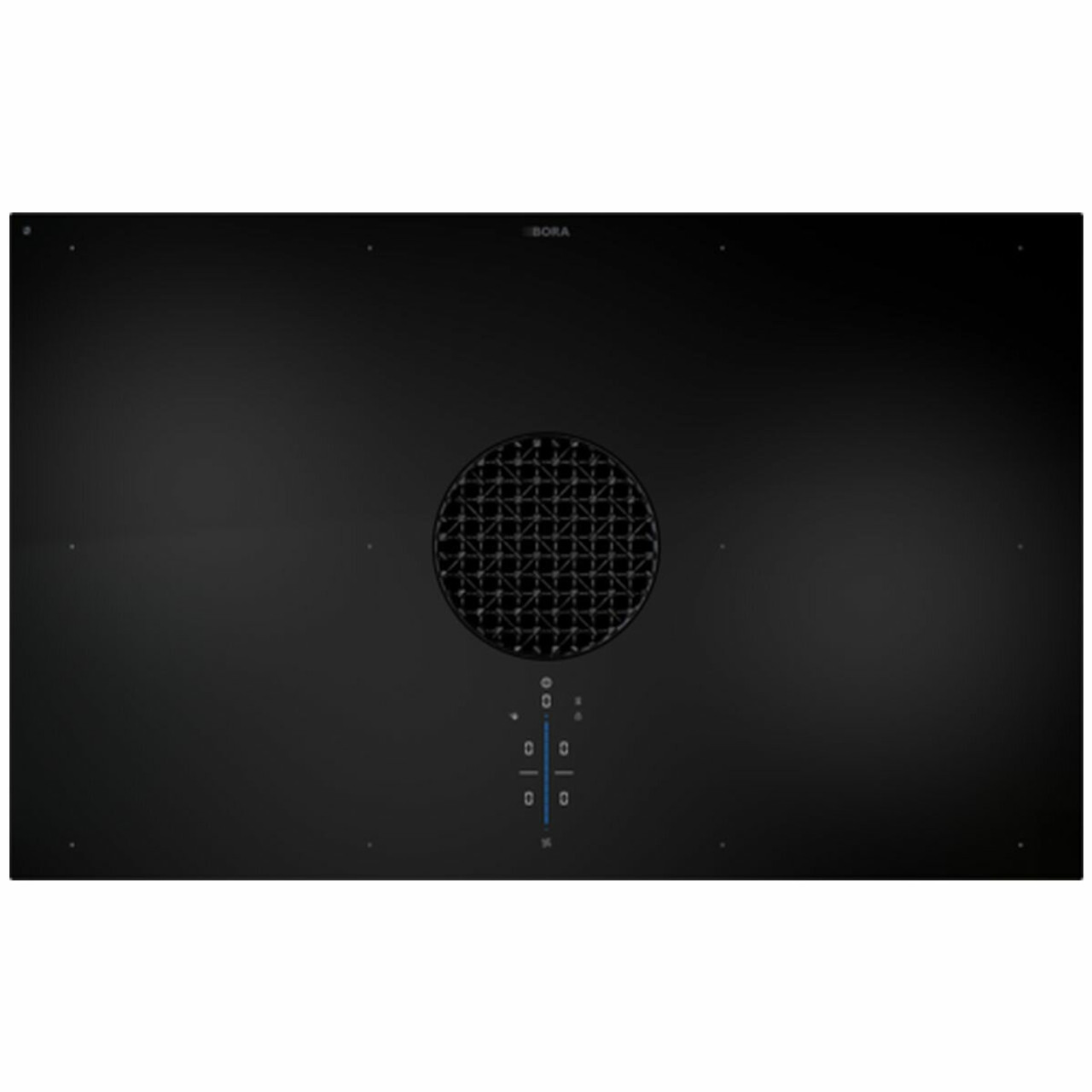

PUXA - 83cm X Pure Induction Cooktop with Externally Ducted Integrated Ventilation System - Black

Product Description

PUXA - 83cm X Pure Induction Cooktop with Externally Ducted Integrated Ventilation System - Black

KEY FEATURES

Minimalistic design - The cooktop and extractor are ideal for flush installation. The perfect lines allow them to blend in discreetly and elegantly with any modern kitchen design. When on standby, the operating panel is virtually invisible and during operation it is scaled down to the essentials thanks to intelligent lighting.

Compact size - Thanks to the compact dimensions and a cooktop depth of 515 mm, the system is suitable for standard kitchen units (60 cm from the front edge) as supplied by all current manufacturers.

Oversized 4 24 cooking surface - Controls that don’t get in the way and perfectly-sized and arranged cooking zones mean that there is room for 2 large pots (up to 24 cm) to be placed one behind the other.

Intuitive sControl control - The unique vertical slider makes operation via the intuitive up and downwards movement of your finger or direct tapping with the fingertip even easier. All of the important functions are at your fingertips in a flash.

Minimum volume - Always markedly quiet - even at high power levels: The reason lies in the optimal airflow and the use of an extremely low-noise fan. There are no distractions when cooking and no interruptions when entertaining.

Variable heat retention function - 3 heat retention levels with constant temperature control at 42, 74 or 94°C.

Maximum storage space - At under 200mm, the low installation height and integrated recirculation unit guarantee maximum storage space for pots and other kitchen utensils in the cupboard below. Even in 60-cm-deep kitchen units, no drawers need to be shortened in recirculation mode. A change from the norm.

Demo mode - The appliance can be set to demo mode via the settings menu, which provides all operating functions, however, the heating function of the cooktops is deactivated.

Model & Design

-           Bora X Pure Range

-           Flush-Integrated

-           Surface Induction Cooktop

-           Integrated Cooktop Extractor with Exhaust Air

-           Black Ceramic Glass

-           Oversized Surface Induction Cooking Zones

-           9 Power Levels

-           Touch Controls

-           Integrated Grease Drip Pan

-           Simple Cleaning, Easily Accessible Parts

-           Dishwasher Safe Parts & Filter

4 Cooktop Zones

-           Size of Front Cooking Zone 230 X 230 Mm

-           Size of Rear Cooking Zone 230 X 230 Mm

-           Front Cooking Zone Output 2100 W

-           Rear Cooking Zone Output 2100 W

-           Front Cooking Zone Power Setting Output 3000 W

-           Rear Cooking Zone Power Setting Output 3000 W

Technical Info

-           Multiphase Supply Voltage 380 – 415 V 2N/3N

-           Single-Phase Supply Voltage 220 – 240 V

-           Frequency 50/60 Hz

-           Maximum Power Consumption 7,6 Kw (4,4 Kw / 3,6 Kw)

-           Three-Phase Power Supply/Fuse Protection 3 X 16 A (Standard Connection)

-           Two-Phase Power Supply/Fuse Protection 2 X 16 A

-           Single-Phase Power Supply/Fuse Protection 1 X 32 A (1 X 20 A / 1 X 16 A)

-           The BORA Ecotube duct system is optimally tailored to the BORA cooktop extractors and guarantees 100% functionality and optimum performance

-           Ensure sufficient ventilation of the area below the cooktop

-           Please note that induction-compatible cookware must be used on induction cooktops

Inclusions

-           Surface Induction Glass Ceramic Cooktop With Integrated Cooktop Extractor – Exhaust Air PUXA

-           Air Inlet Nozzle

-           Stainless Steel Grease Filter

-           Operating and Installation Instructions

-           Mounting Clamps

-           Sealing Tape

-           Height Adjustment Plate Set

-           Housing Cover Power Supply

-           Installation Accessories for The Power Supply

-           Glass Ceramic Scraper

Available Accessories

-           Stainless Steel Grease Filter PUEF

-           Air Inlet Nozzle PUXED

-           UDB25 Sealing Tape

-           BKR830 Cooktop Frame

-           Home in Module PUHIM

-           Air Purification Box PULB

-           Air Purification Box Telescopic Pull-Out PULBTA
