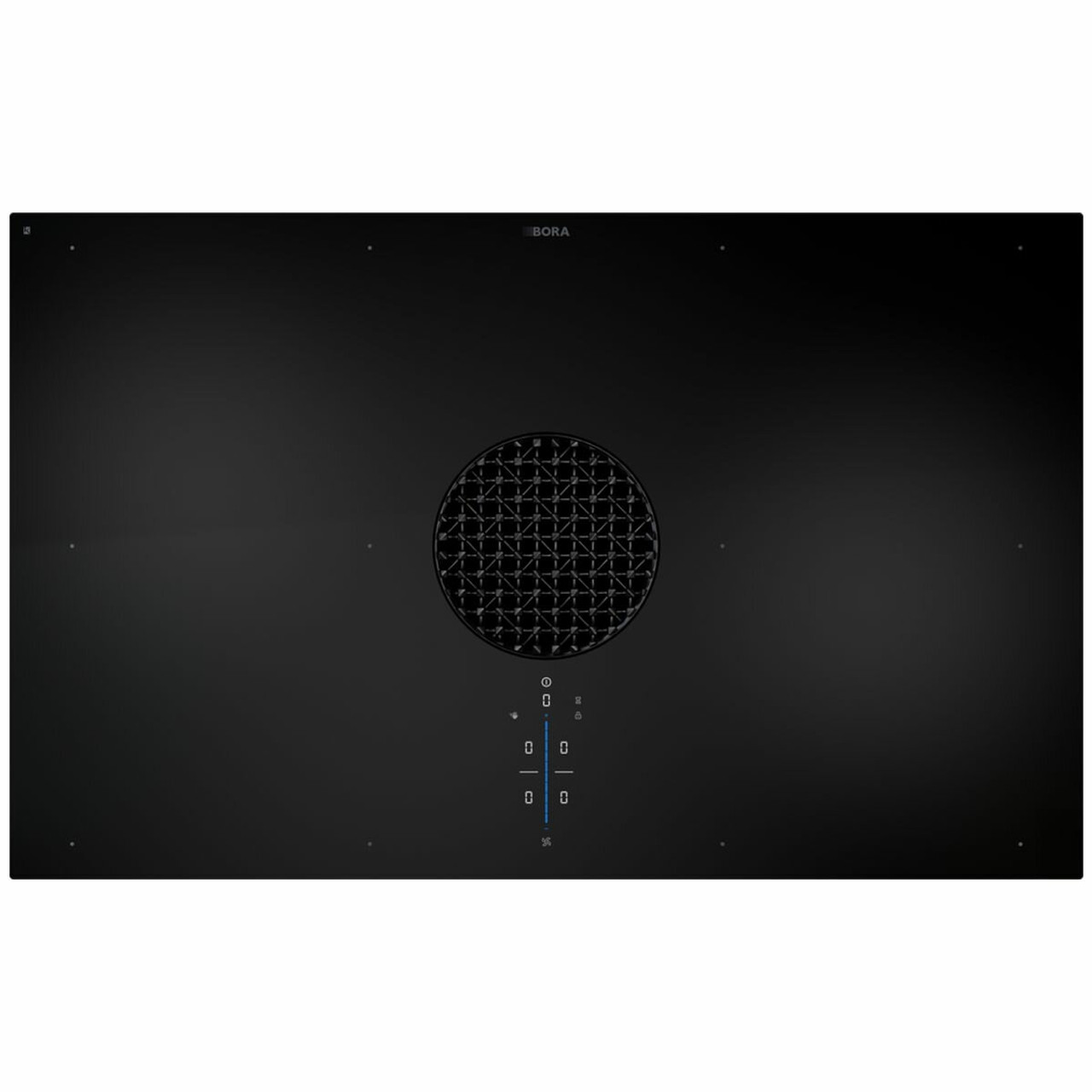

PUXU - 83cm X Pure Induction Cooktop with Integrated Recirculating Ventilation System - Black

Product Description

PUXU - 83cm X Pure Induction Cooktop with Integrated Recirculating Ventilation System - Black

KEY FEATURES

Minimalistic design - The cooktop and extractor are ideal for flush installation. The perfect lines allow them to blend in discreetly and elegantly with any modern kitchen design. When on standby, the operating panel is virtually invisible and during operation it is scaled down to the essentials thanks to intelligent lighting.

eSwap - In recirculation mode odours are neutralised by a highly efficient activated charcoal filter. To make life easier, the filter is changed from the top through the air inlet aperture – without having to remove drawers or plinth panels.

Effective odour removal - Fresh, odourless ambient air in the whole kitchen:The air cleaning boxes and integrated filter solutions effectively remove unpleasant odours in recirculation mode - and for a long time.

Oversized surface induction cooking zones - Particularly large surface induction cooking zones measuring 230 x 230 mm or 230 x 460 mm when the bridging function is activated.

Intuitive sControl control - The unique vertical slider makes operation via the intuitive up and downwards movement of your finger or direct tapping with the fingertip even easier. All of the important functions are at your fingertips in a flash.

Minimum volume - Always markedly quiet - even at high power levels: The reason lies in the optimal airflow and the use of an extremely low-noise fan. There are no distractions when cooking and no interruptions when entertaining.

Variable heat retention function - 3 heat retention levels with constant temperature control at 42, 74 or 94°C.

Maximum storage space - At under 200mm, the low installation height and integrated recirculation unit guarantee maximum storage space for pots and other kitchen utensils in the cupboard below. Even in 60-cm-deep kitchen units, no drawers need to be shortened in recirculation mode. A change from the norm.

Model & Design

-           Bora X Pure Range

-           Flush-Integrated

-           Surface Induction Cooktop

-           Integrated Cooktop Extractor with Recirculation

-           Black Ceramic Glass

-           Oversized Surface Induction Cooking Zones

-           9 Power Levels

-           Touch Controls

-           Integrated Grease Drip Pan

-           Simple Cleaning, Easily Accessible Parts

-           Dishwasher Safe Parts & Filter

2 Cooktop Zones

-           Size of Front Cooking Zone 230 X 230 Mm

-           Size of Rear Cooking Zone 230 X 230 Mm

-           Front Cooking Zone Output 2100 W

-           Rear Cooking Zone Output 2100 W

-           Front Cooking Zone Power Setting Output 3000 W

-           Rear Cooking Zone Power Setting Output 3000 W

Technical Info

-           Multiphase Supply Voltage 380 – 415 V 2N/3N

-           Single-Phase Supply Voltage 220 – 240 V

-           Frequency 50/60 Hz

-           Maximum Power Consumption 7,6 Kw (4,4 Kw / 3,6 Kw)

-           Three-Phase Power Supply/Fuse Protection 3 X 16 A (Standard Connection)

-           Two-Phase Power Supply/Fuse Protection 2 X 16 A

-           Single-Phase Power Supply/Fuse Protection 1 X 32 A (1 X 20 A / 1 X 16 A)

-           Filter Medium       Activated Charcoal Filter With Ion Exchanger

-           Filter Material       Filter Panel with Fine Filter

-           Maximum Filter Service Life 150 H (1 Year)

-           The air cleaning box is fitted with a telescopic pull-out (extension to 80 mm) for connection to the back wall of the unit

-           The telescopic extension of the air purification box in extra-deep cooktop base cabinets can be extended by 105 mm with an additional telescopic extension PULBTA (available as accessory)

-           Ensure sufficient ventilation of the area below the cooktop

-           Please note that induction-compatible cookware must be used on induction cooktops

Inclusions

-           Surface Induction Glass Ceramic Cooktop with Integrated Cooktop Extractor – Recirculation PUXU

-           Air Inlet Nozzle

-           Stainless Steel Grease Filter

-           Operating and Installation Instructions

-           Drilling Template

-           Mounting Clamps

-           Sealing Tape

-           Height Adjustment Plate Set

-           Housing Cover Power Supply

-           Installation Accessories for The Power Supply

-           Glass Ceramic Scraper

Available Accessories

-           Activated charcoal filter PUAKF

-           Stainless steel grease filter PUEF

-           Air inlet nozzle PUXED

-           UDB25 sealing tape

-           BKR830 cooktop frame

-           Air purification box telescopic pull-out PULBTA
